Atwill-Morin-Maçonnerie-béton-échafaudage

Façade and Architectural Elements Masonry

Brick Preparation and Treatment
Briques
Concealed Lintels
Linteaux cachés sur une des façades de Maison RH
A Custom Designed Shoring System
Système d'étaiement temporaire
Unique Architectural Details
Brique et colonne de Maison RH

Façade and Architectural Elements Masonry

Briques
Brick Preparation and Treatment

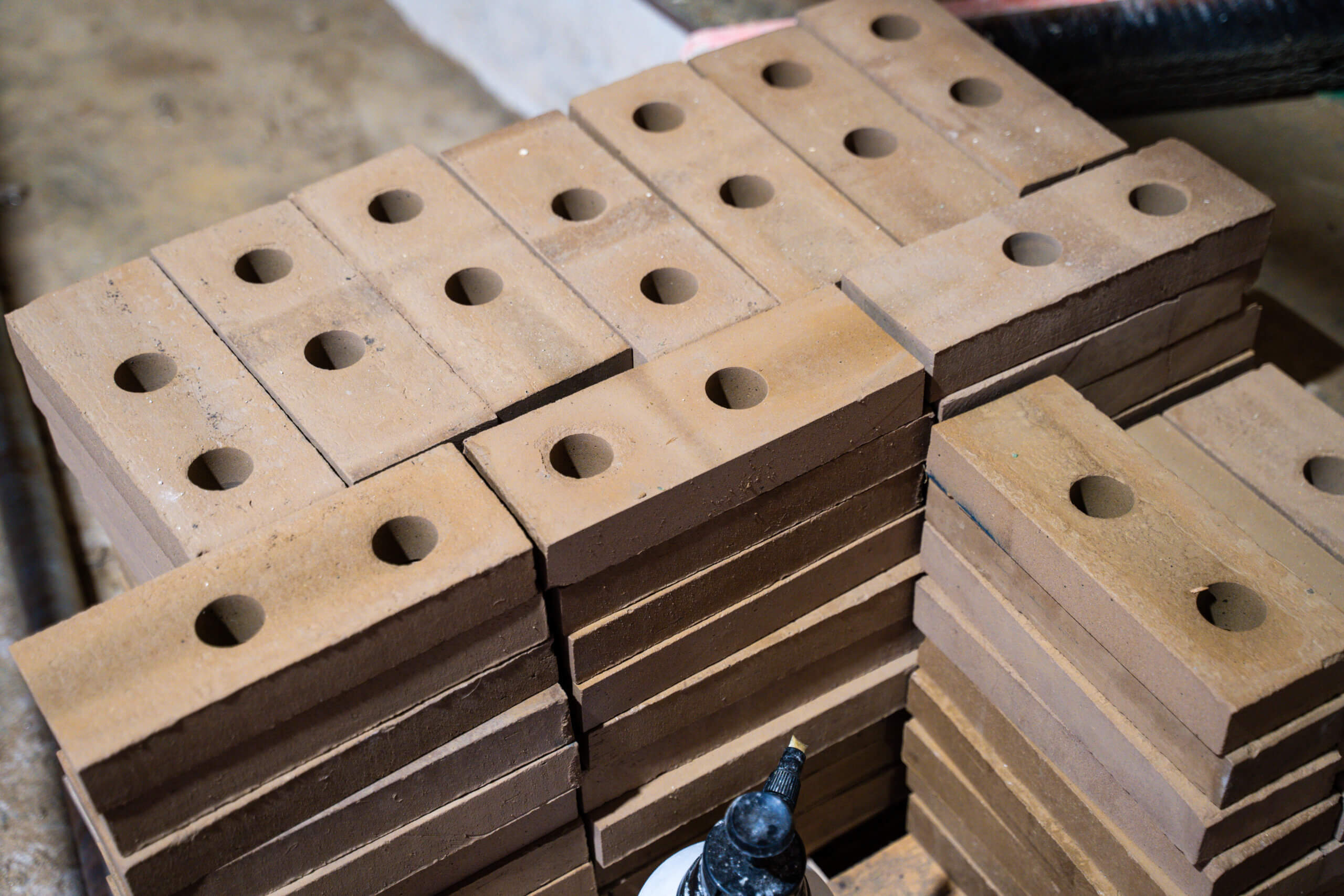

Our masons carried out highly meticulous work on the bricks imported from Italy, which had an exceptionally high absorption rate. Each brick was first soaked in one-thousand-liter water tanks until fully saturated, then dried to reach the optimal moisture level before installation. This process ensured better adhesion with the mortar. At the same time, nearly thirty-five thousand bricks were cut to match the dimensions required by the original design, a meticulous task completed both on site and in our warehouse.

Linteaux cachés sur une des façades de Maison RH
Concealed Lintels

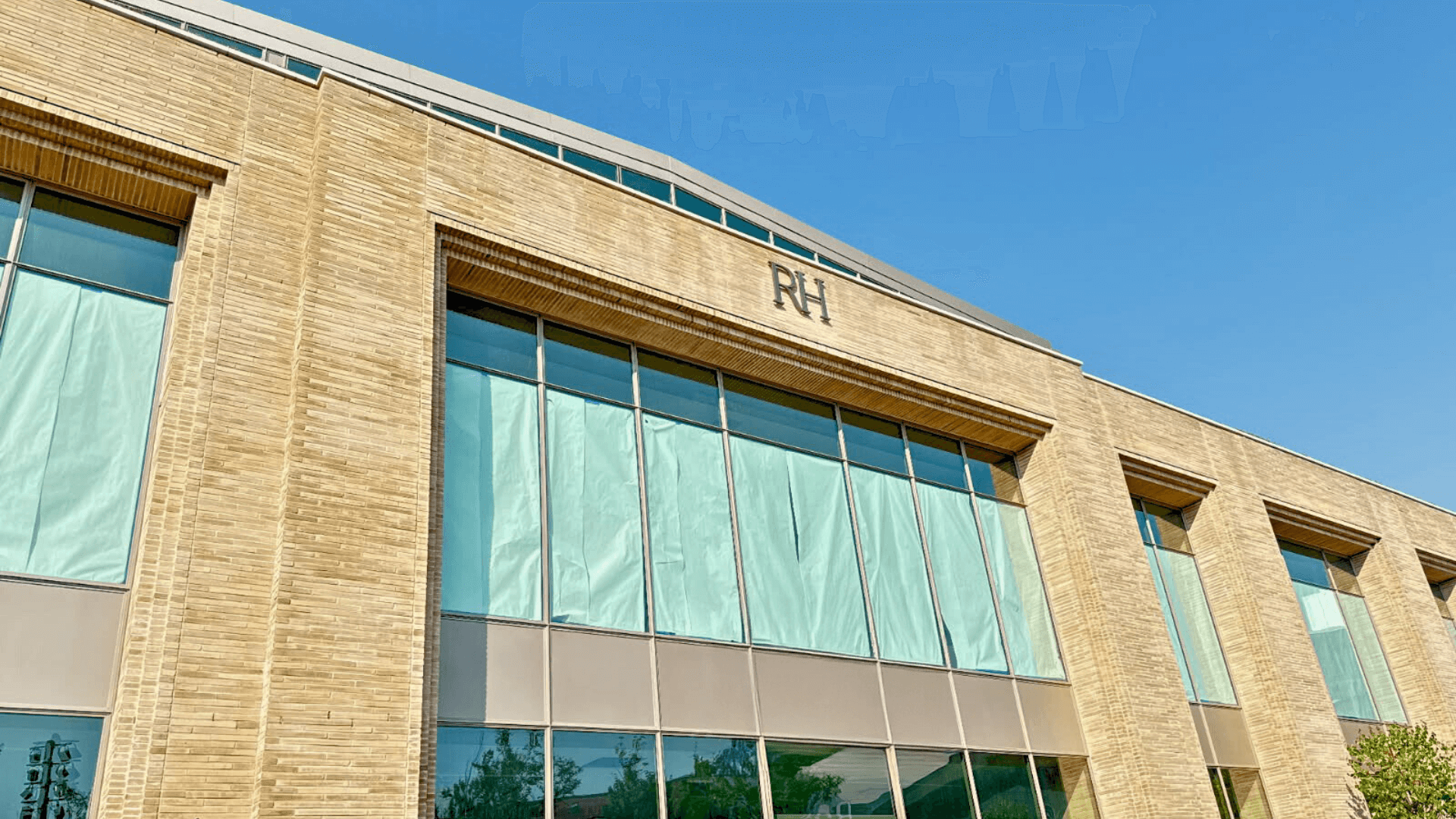

Among the most notable architectural features of RH Montreal, the concealed lintels create the illusion that the brick is floating. These hidden lintels stand out for their ingenuity: the brick was drilled to allow the reinforcement to pass through. The result is a refined and discreet elegance that elevates the entire façade. To achieve this architectural feat, each window was precisely surveyed to ensure perfect alignment during installation. To save time and avoid resurfacing the joints, our team created custom plastic tabs inserted into the joints to keep them empty until the mortar set. This innovation optimized workflow while ensuring the quality of the final result.

Système d'étaiement temporaire
A Custom Designed Shoring System

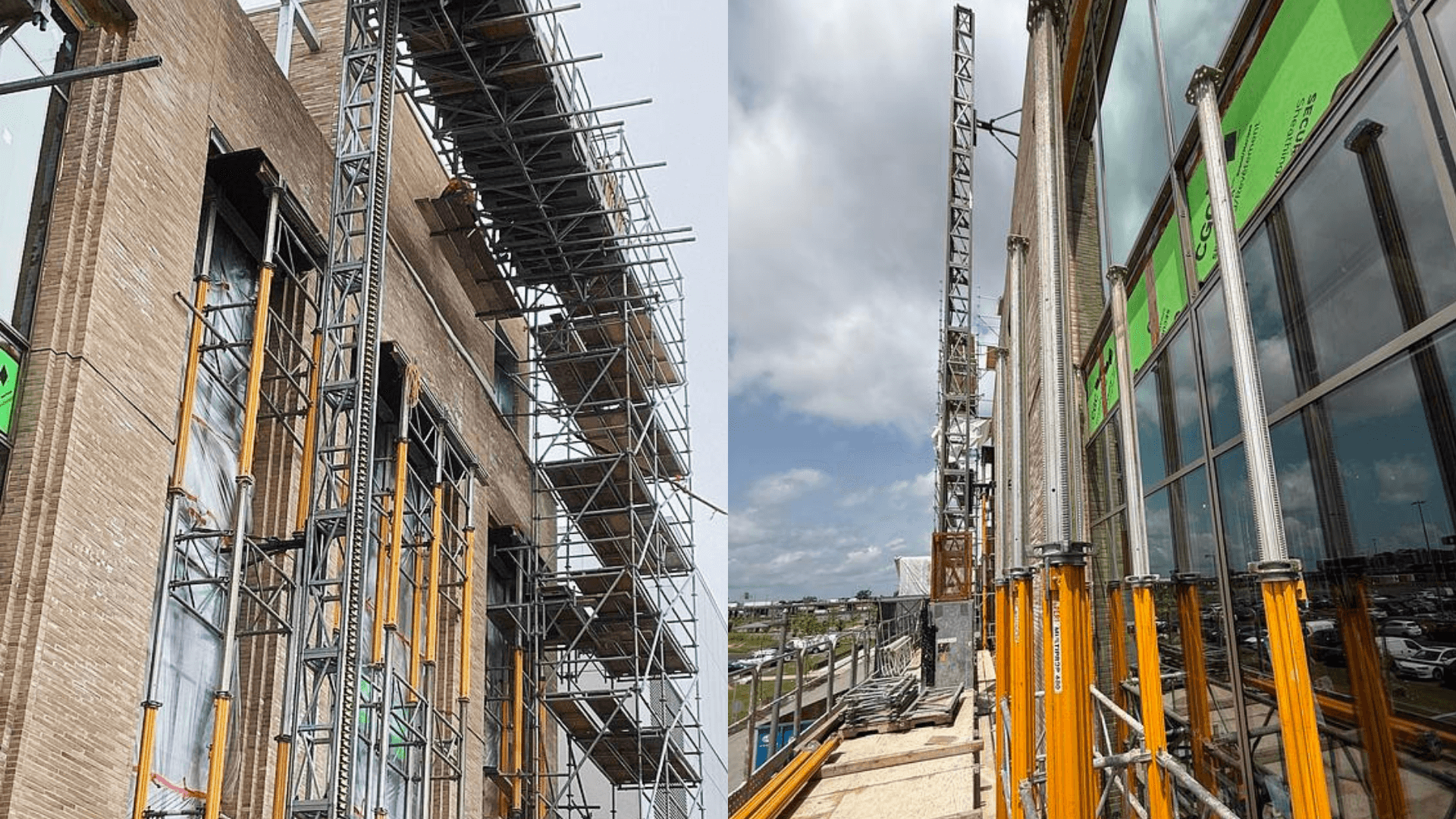

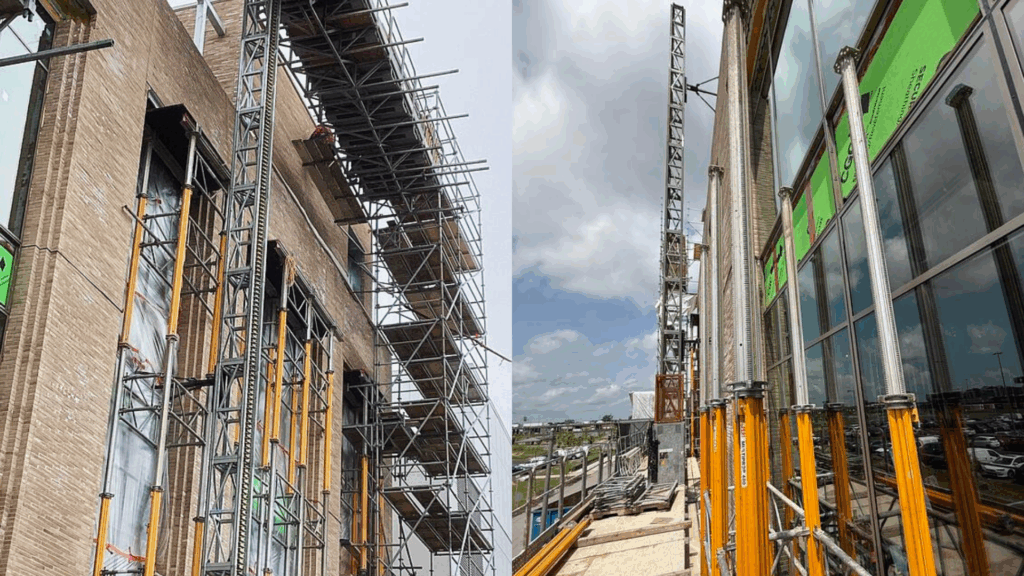

A temporary PERI shoring system was developed and designed by our team specifically for this project to support the brick above the window openings during mortar curing. It was an efficient, simple, and economical solution. Once the curing period was completed, the shoring elements were gradually released and removed, freeing the structure without compromising the strength of the masonry.

Brique et colonne de Maison RH
Unique Architectural Details

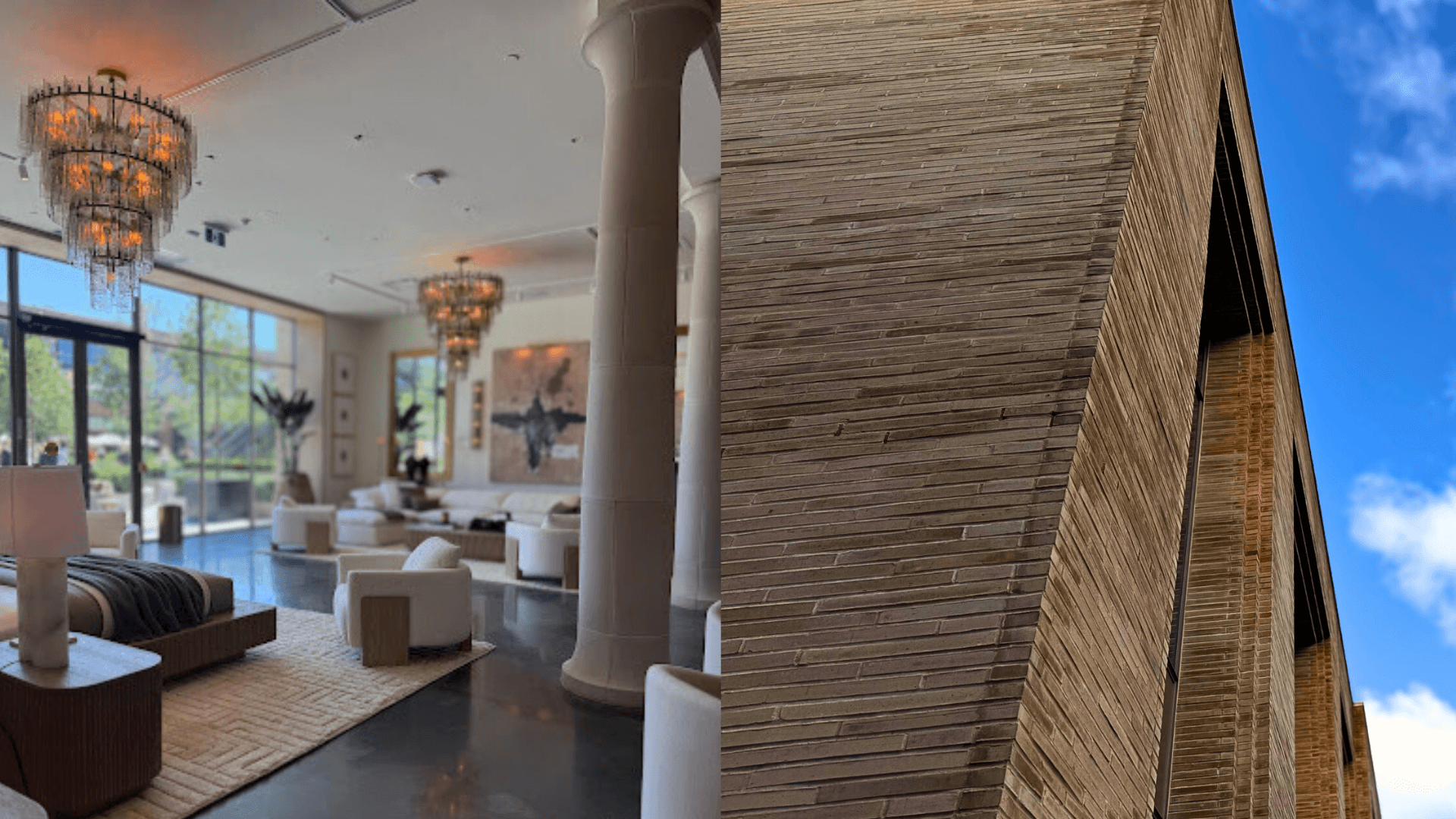

Maison RH is unlike any other project we’ve done. Notably, our masons installed eight Greek-style columns fabricated in Texas, anchored to the steel structure and assembled by hand inside the boutique. In addition, instead of the standard configuration with two rows of stretchers, a three-row masonry layout was used. Finally, the parapet was built entirely in stone, with no metal coping, using nine different prefabricated stone shapes.

An Unprecedented Achievement

We are truly proud to have completed this unique project, especially with the concealed lintels. It’s a first in Quebec!
Eric
Superintendant

Hidden Lintels

See how hidden lintels create the impression that the brick is holding itself.
