Société québécoise des infrastructures (SQI) Building

Québec

2024

Québec

2024

Atwill-Morin-Maçonnerie-béton-échafaudage

Complete Replacement of the Concrete Cladding

Installation of GFRC Panels

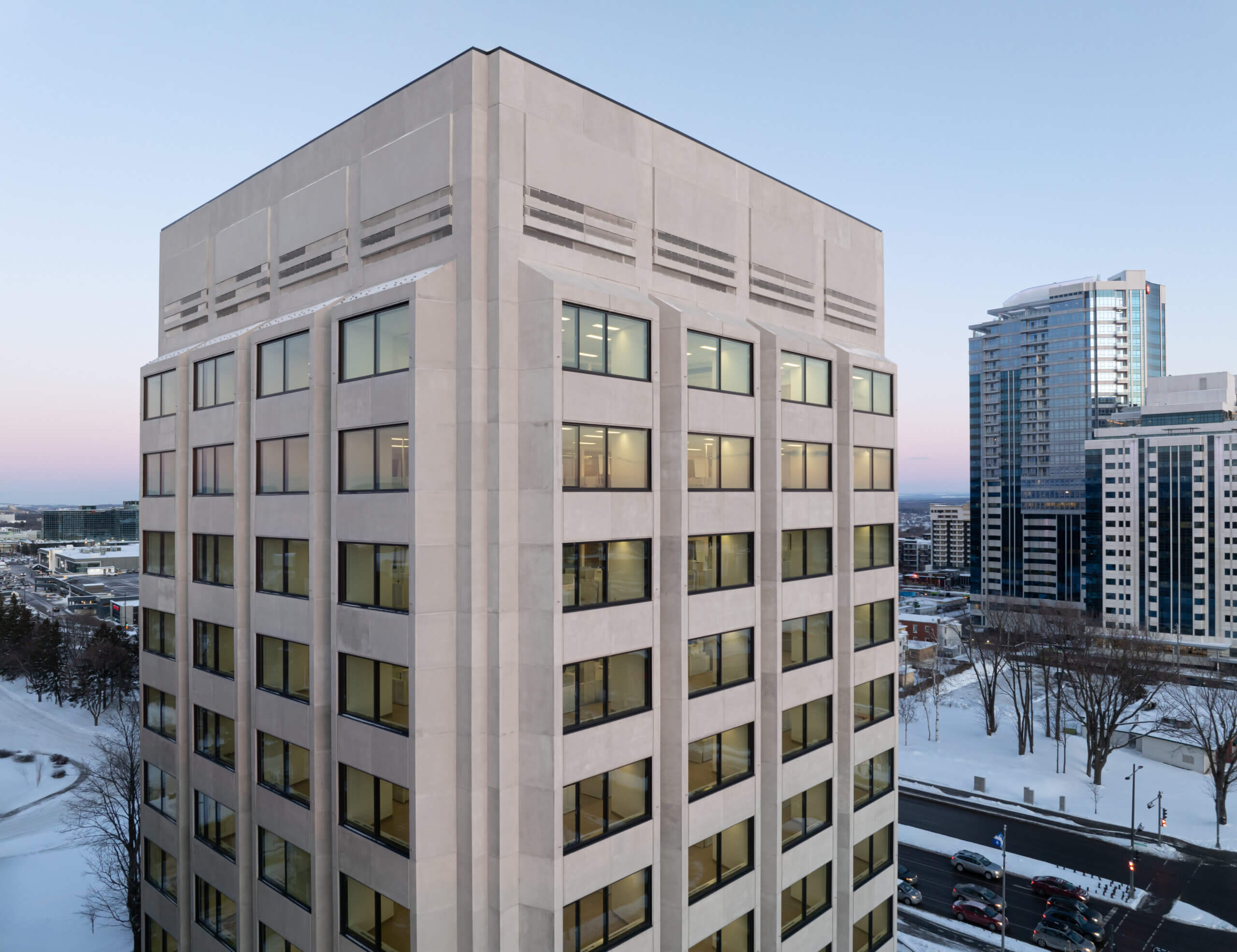

Vue du haut du bâtiment. Panneaux GRFC
Custom Hoisting System
Monte-charge adapté
Precise and Safe Installation

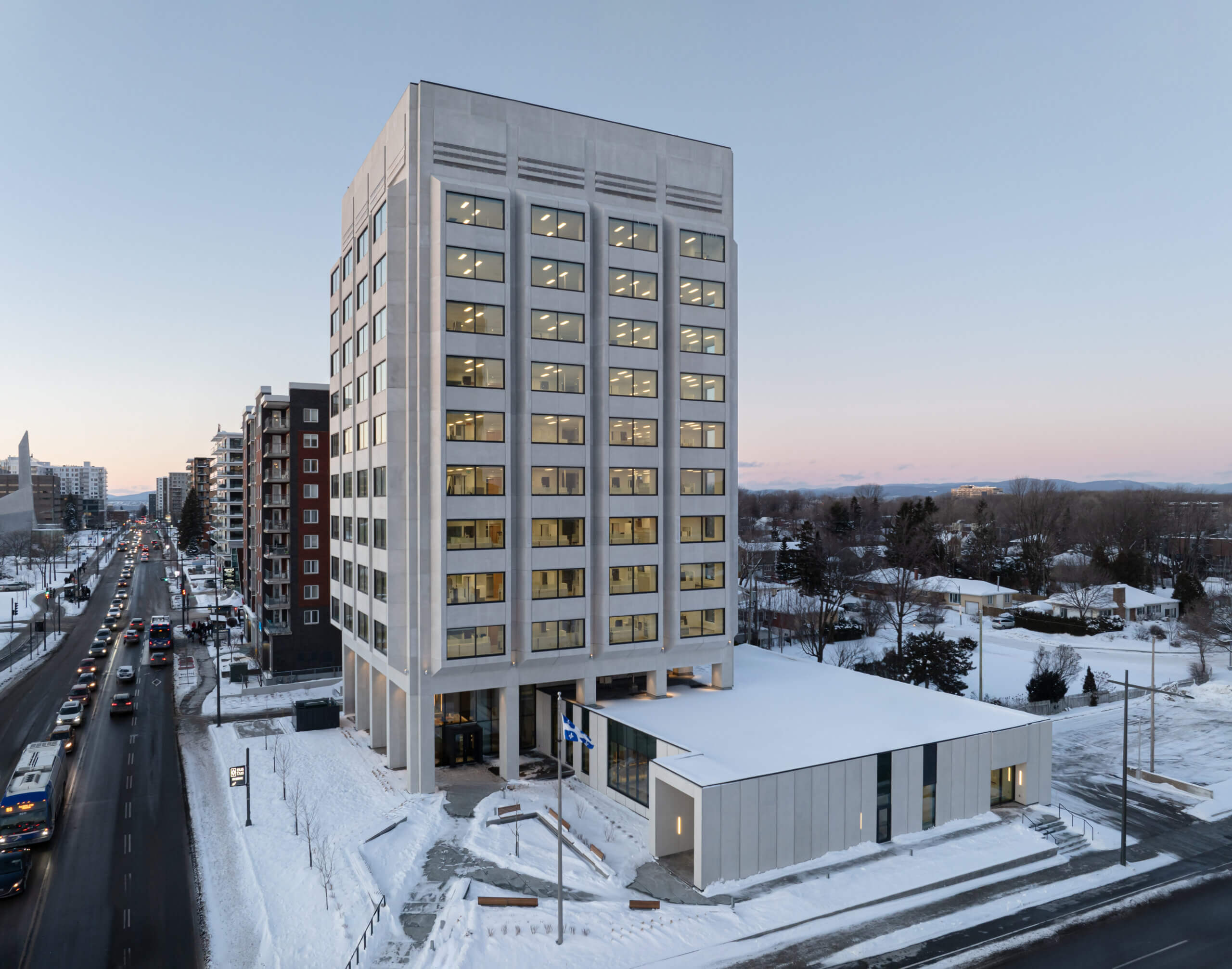

Bâtiment vue de l'extérieur
Sealing and Waterproofing

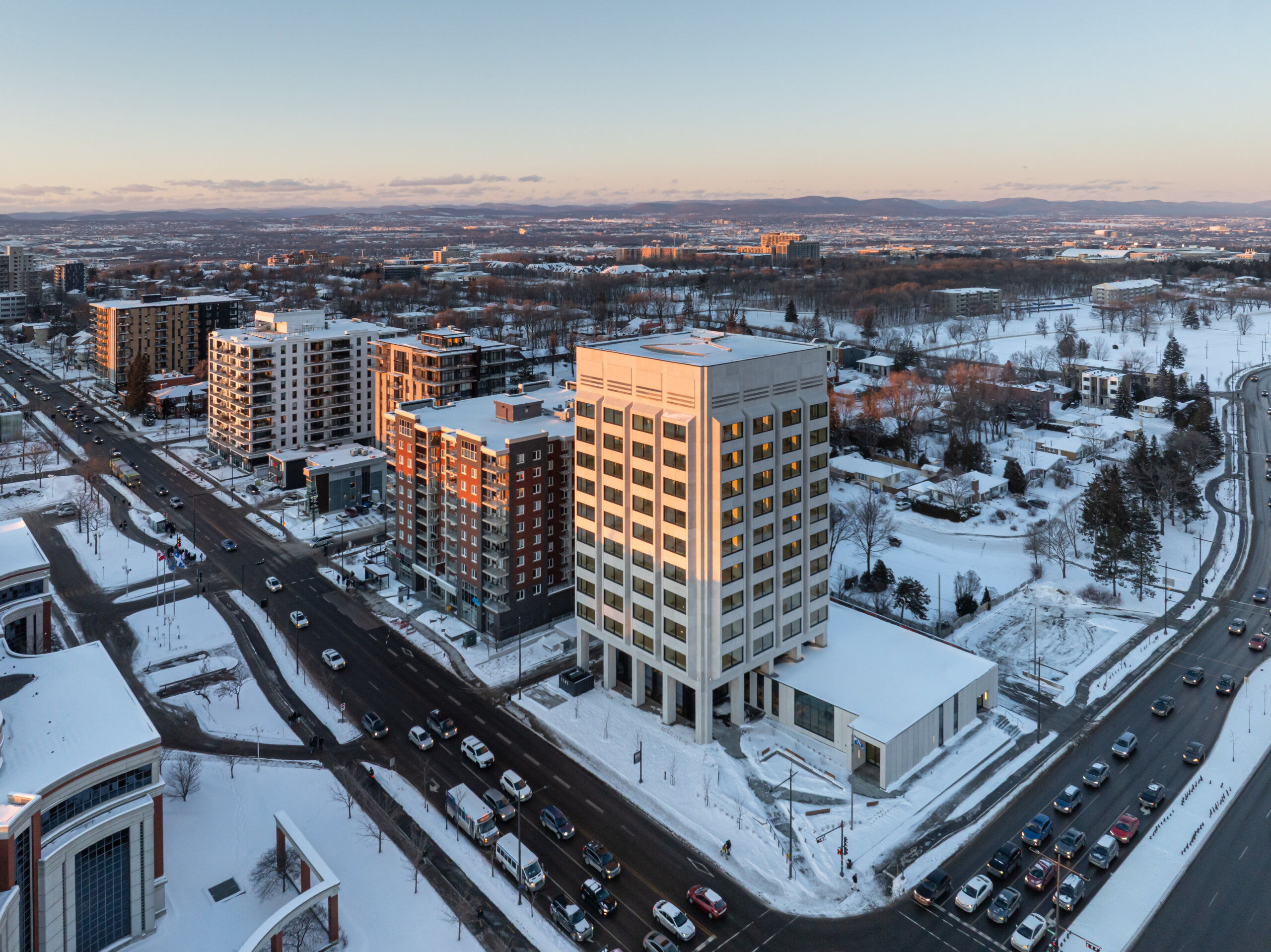

Vue de loin et en hauteur du bâtiment. rénovation façade immeuble

Complete Replacement of the Concrete Cladding

Vue du haut du bâtiment. Panneaux GRFC
Installation of GFRC Panels

We installed lightweight GFRC (Glass Fiber Reinforced Concrete) panels. Each one was securely attached to the structure using over 10,000 anchors drilled directly into the concrete. These anchors supported the vertical load and prevented any lateral movement.

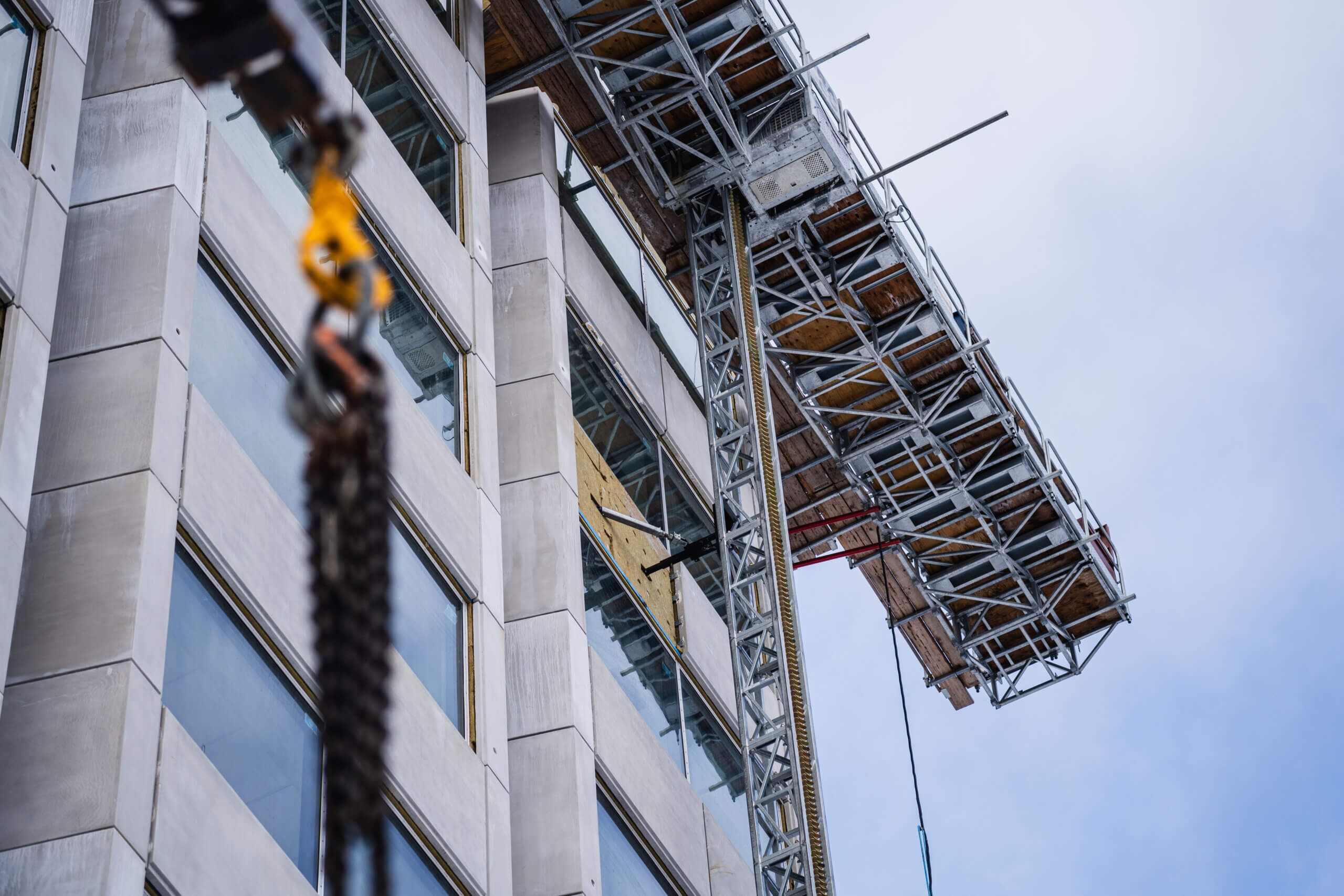

Monte-charge adapté
Custom Hoisting System

To facilitate installation, we used a hoist specifically adapted to the constraints of the site. This custom system allowed us to safely lift the panels while the team coordinated their positioning with precision.

Bâtiment vue de l'extérieur
Precise and Safe Installation

The team worked in full coordination, with the hoist lifting the panels from the ground and setting them precisely in their intended locations. Operators stationed on Fraco mast-climbing platforms monitored and guided the hoist throughout the operation. This method ensured a smooth workflow despite the complexity of the task.

Vue de loin et en hauteur du bâtiment. rénovation façade immeuble
Sealing and Waterproofing

We fully redid the caulking joints between the panels to ensure complete waterproofing of the façade. In addition to protecting the structure, this sealing work contributes to energy efficiency by reducing heat loss, in accordance with plans by Lemay, ABCP architectes, and the structural engineering firm.

Reinforced Expertise

This was one of our first major GFRC projects. We learned a lot from it, including how to manage a large number of anchors and install numerous panels. A rich experience that strengthened our expertise.
Sébastien
President, Quebec division
