Massey Hall

Toronto

2018-2021

Toronto

2018-2021

Brick Walls and Architectural Stone Elements Restoration

Brick Wall And Masonry Restoration
22053 719
Architectural Stone Elements Replacement
RealisationMasseyHall
Masonry Cleaning
22053 737
Structural Reinforcement and Anchoring
22053 716

Brick Walls and Architectural Stone Elements Restoration

Brick Wall And Masonry Restoration

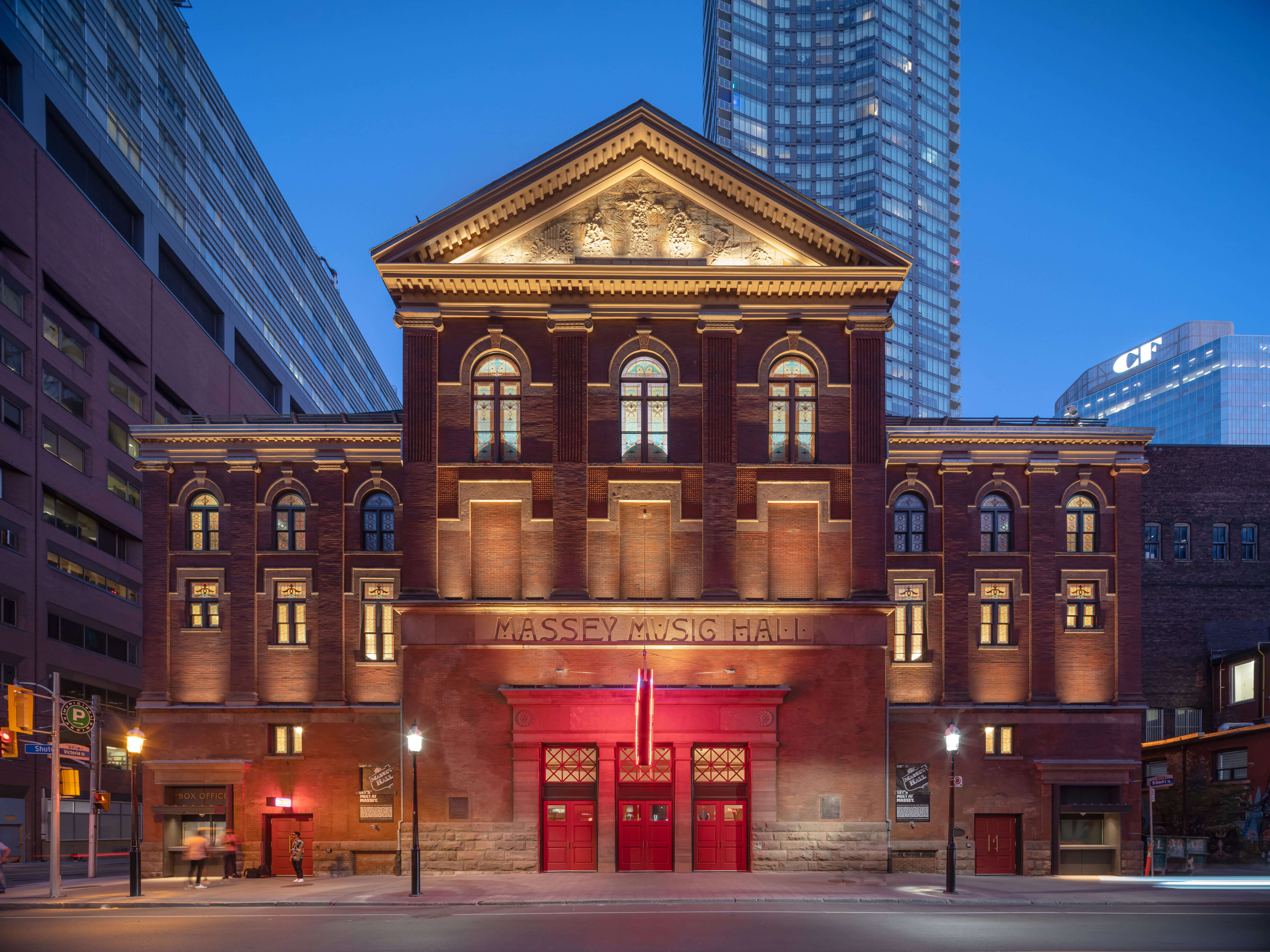

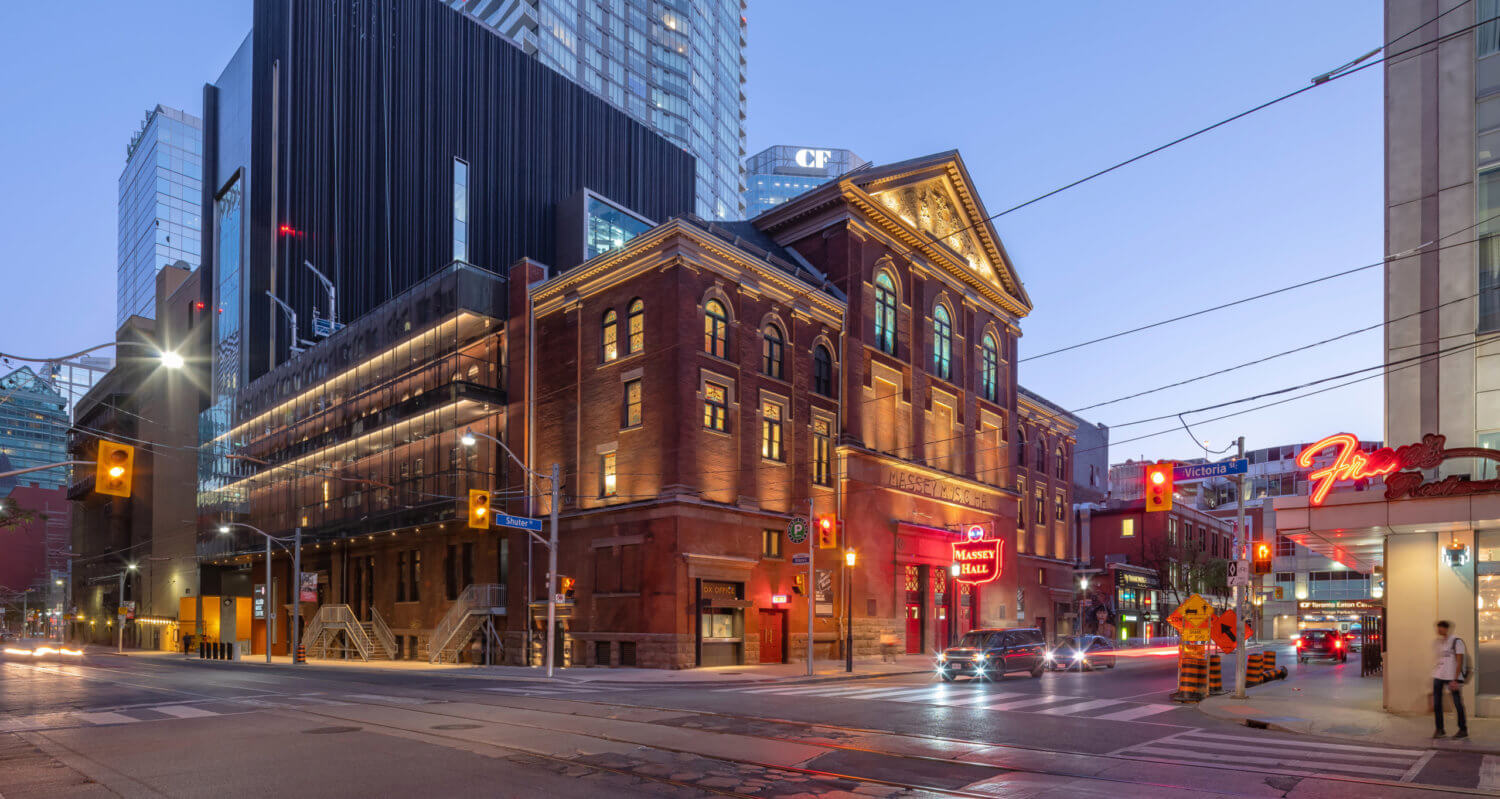

Major masonry restoration work included repointing, brick changes and Dutchman, removal of the “moustache” stairs that were installed after the Great fire of Toronto in 1911. The stair exit openings on the North façade were closed using brick and natural stone. The iconic “ MASSEY MUSIC HALL” in limestone was once again made whole. Our expert masonry restoration team sourced a matching stone and mock-ups of the lettering were prepared. Great attention was also paid to restoring the Pediment, were we now find the “shadows“ of the orchestra.
Architectural Stone Elements Replacement

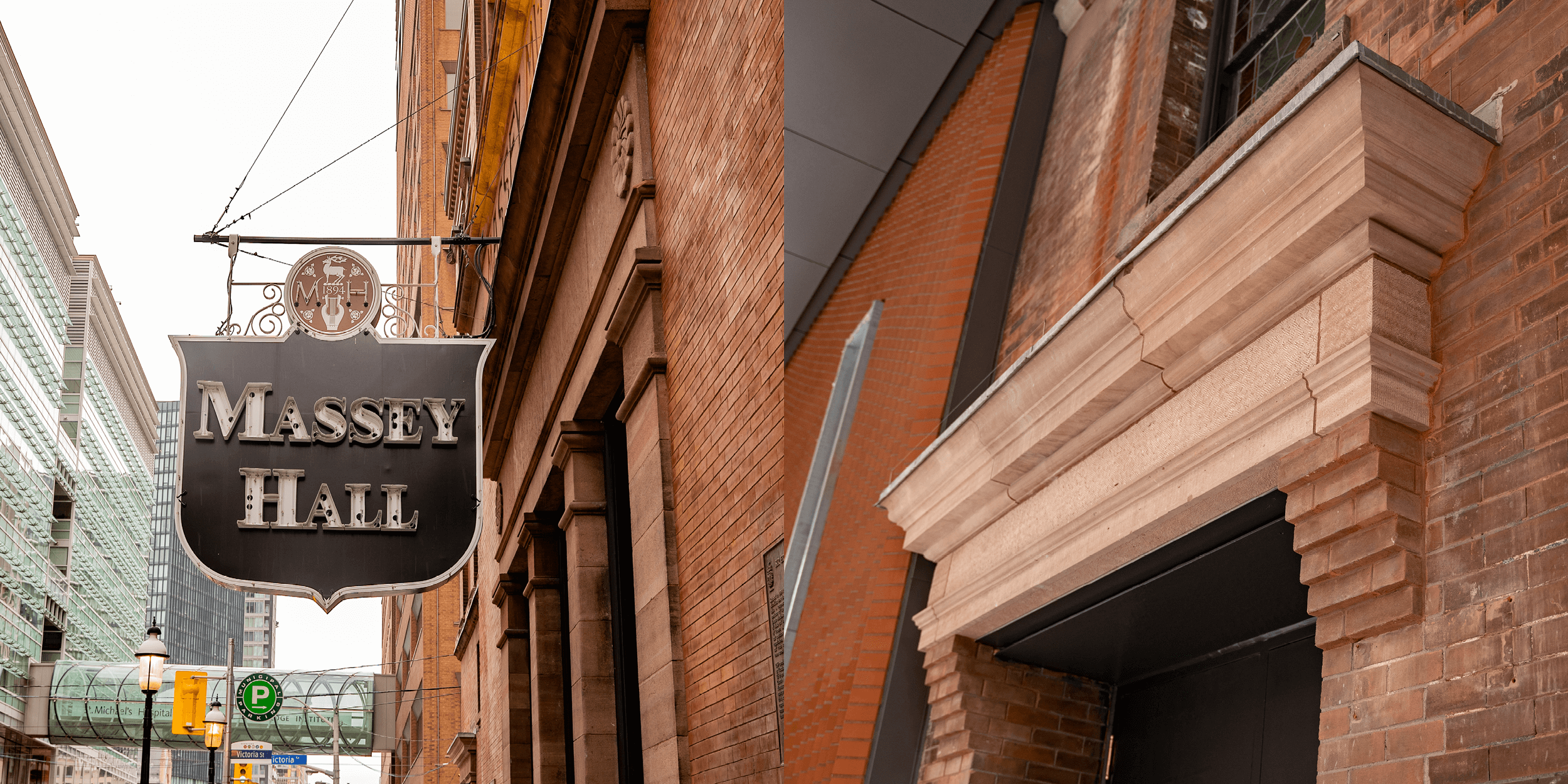

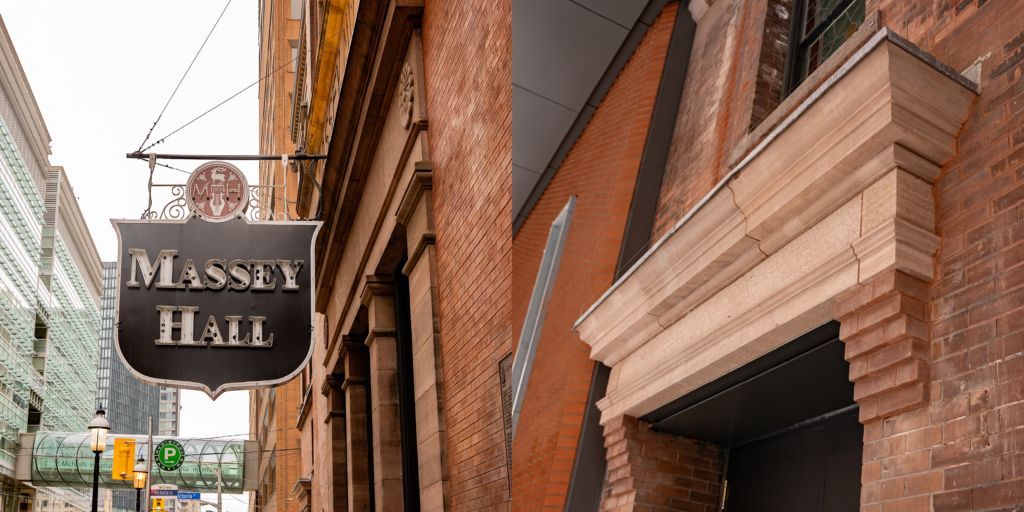

Air pollution, weathering and presence of soluble salts had deteriorated the stone. We were required to reproduce the stone, matching the existing stone profiles. Our highly skilled artisan masons completed the preparation and installation of new architectural stone pieces, spandrels and corners.
Masonry Cleaning
Soft blasting cleaning : an abrasive carried by a flow of compressed air and water directed at the substrate to be cleaned, to gently remove carbon crusts, paint and limescale. There was a large number of areas affected by efflorescence on the surface of the brick, which was treated with a poultice and water. The Pediment on the North Façade had been painted over with a lead based paint and was decontaminated using a super heated steam cleaner. Finally, a light chemical cleaning was used in general areas to remove mortar stains and atmospheric dirt.
Structural Reinforcement and Anchoring

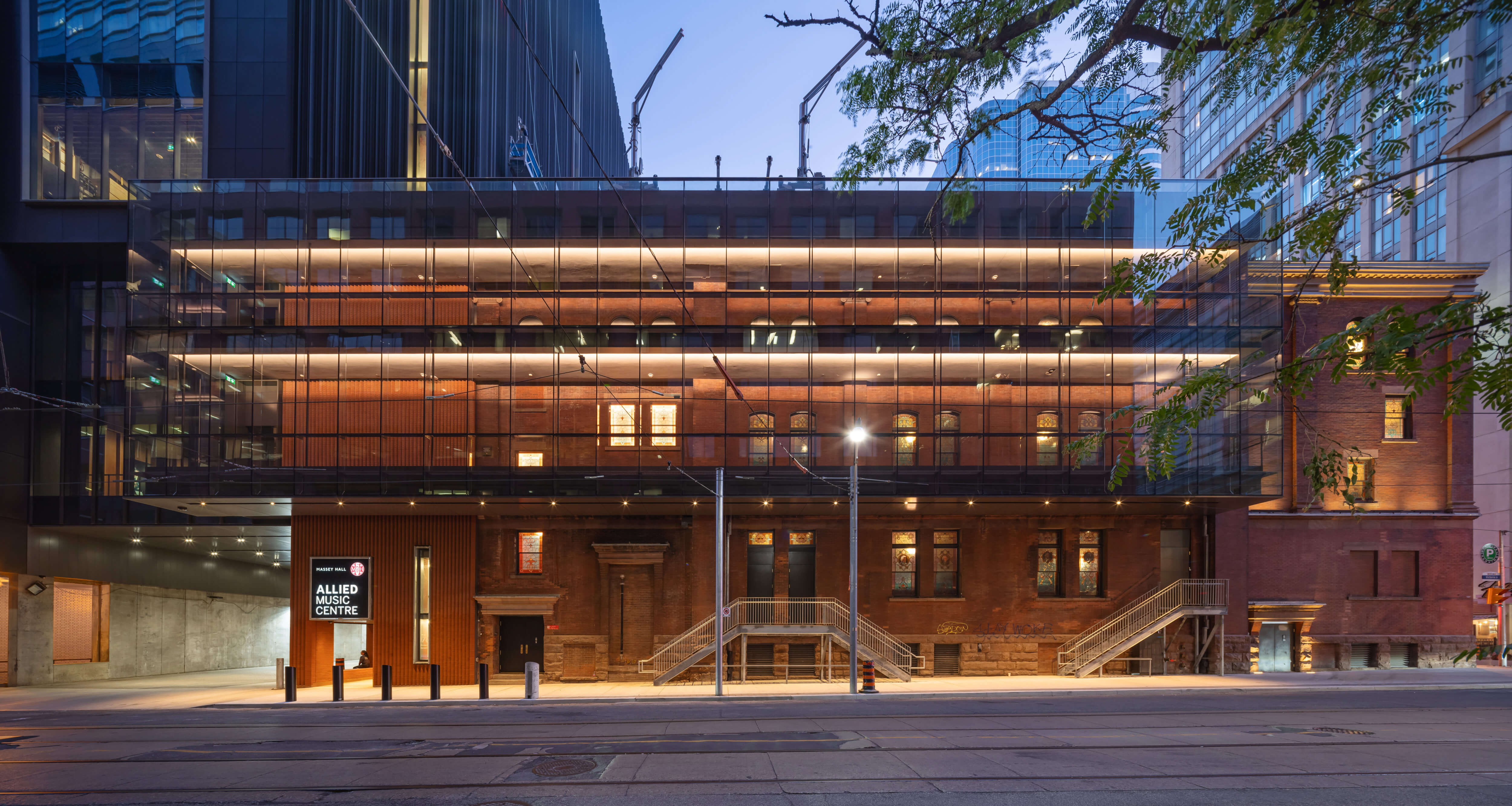

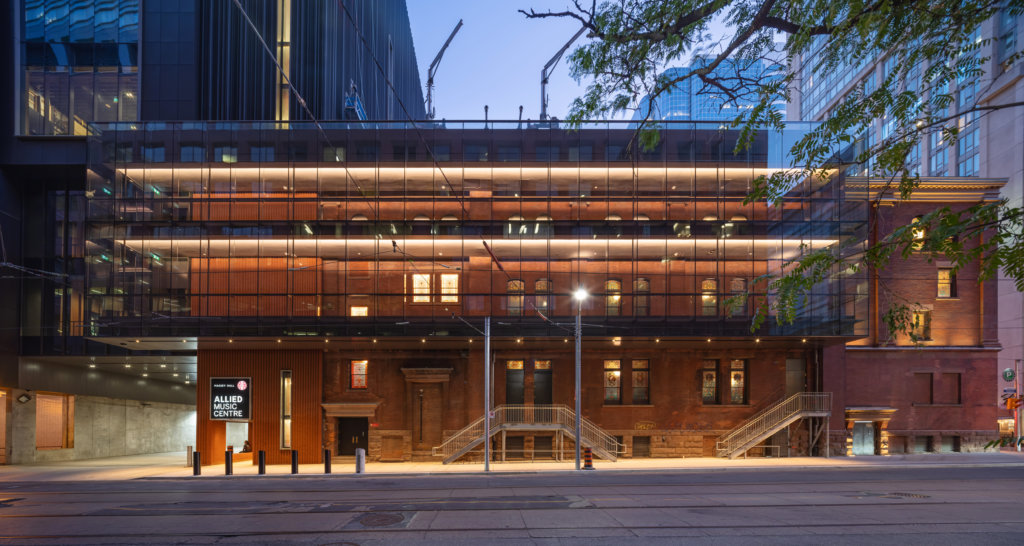

Our team installed over 2000 cintec anchors in various locations to aid in the structural integrity and anchoring of additional steel components. The Cintec anchor system played a pivotal role in forming part of the anchor plates securing the East and West passerelles.

Historical Renovation

It was an honour to take part in the the most significant renovation in Massey Hall’s 127-year history.
Justin
Superintendent
